A breakthrough in breast cancer diagnostic imaging
Seno Medical’s imaging system uses opto-acoustic technology interleaved with ultrasound (OA/US) to generate functional and anatomical images of the breast. As a new imaging modality, Seno believes that its Imagio® breast imaging system will be a more effective tool to help radiologists confirm or rule out malignancies than current diagnostic imaging approaches, without exposing patients to potentially harmful ionizing radiation (X-rays) or contrast agents, including breast cancer biopsies.
Studies are an essential component of our opto-acoustic technology research.
The Seno Advantage
Understand advantages of opto-acoustic imaging over current diagnostic imaging techniques
Discover how Seno Medical’s opto-acoustic technology will be applied beyond breast imaging
How Seno’s Technology Works

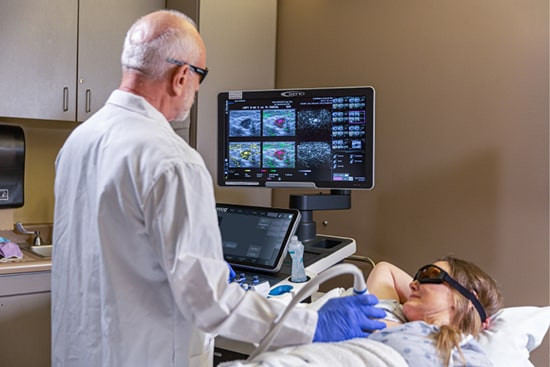

Seno’s opto-acoustic technology combines both laser optics and conventional ultrasound technology to provide fused functional and anatomical breast imaging in real time. The result is a diagnostic imaging tool that delivers additional functional information regarding suspicious breast masses and potentially increases confidence regarding the need for breast cancer diagnostic biopsies.
Reducing unnecessary breast cancer biopsies:
Why it matters
Dr. Linver Discusses Breast Biopsies
Dr. Harms Discusses Breast Biopsies
Learn more about Seno Medical
Seno’s opto-acoustic technology is a platform technology with a number of applications.
Frequently Asked Questions
1. What makes Seno’s technology different?
Seno’s technology produces high-resolution images related to the performance of tissue; this class of imaging techniques is known as functional imaging. By comparison, existing technologies such as X-ray and ultrasound produce anatomical images which only show the structure of tissue. In Seno’s technology, the images are generated based on hemoglobin concentration and its level of oxygenation; the growth of malignant tumors is supported by additional new blood vessels, a process known as angiogenesis, to provide the necessary hemoglobin for that growth. The resulting increased concentration of hemoglobin, especially that which has given up its oxygen to the cancer cells, is a prime indicator of cancer. Seno’s technology shows this type of functional information. Images are generated without using ionizing radiation (X-rays) or injection of contrast agents.
2. How is opto-acoustic imaging different from conventional ultrasound?
The existing optical and ultrasonic imaging techniques create images by transmitting energy in one form and detecting that energy in the same form, which greatly limits the information that can be captured and reported. Opto-acoustics transmits light energy but detects sound energy; by using multiple colors of laser light a much broader range of data can be captured which makes the functional images possible.
3. When will a device which is usable for humans be ready?

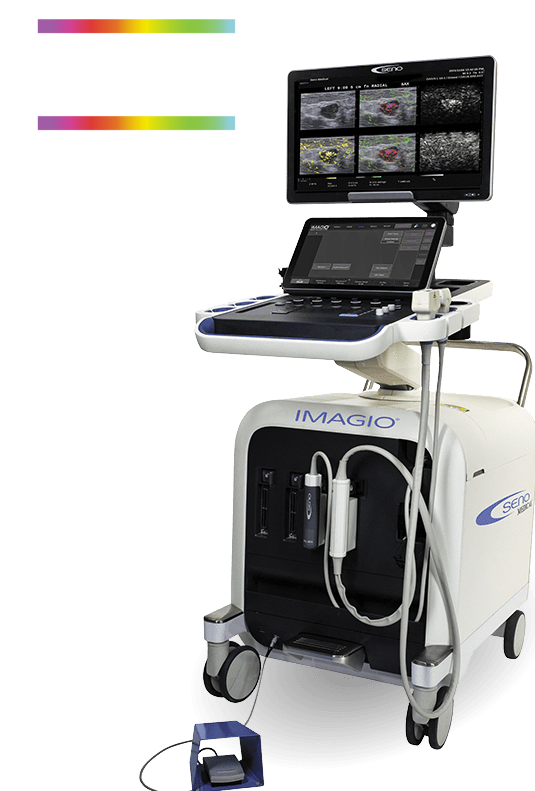

The Imagio® Breast Imaging System – opto-acoustic fused with ultrasound (OA/US) – is currently CE marked in Europe with commercial delivery of the product expected during the first half of 2019. The Imagio® OA/US Breast Imaging System is currently being processed through the U.S. FDA system of approval. That approval is expected by year-end 2019 with sales in the U.S. immediately after approval.
4. What is the pathway for regulatory approval?
The pathway of approval for sale and use of Seno’s opto-acoustic imaging system is governed by the Food and Drug Administration (FDA) Center for Devices and Radiological Health. The FDA’s Office of Device Evaluation is responsible for ensuring the safety and effectiveness of the medical devices available to U.S. consumers and does so based on documentation collected by the device manufacturer. Although optical and ultrasound devices are both already used clinically, the unique combination of technologies present in Seno’s opto-acoustic tomography system will require a regulatory approval process reserved for new technologies, which is known as a Pre-Market Approval.
5. Are the lasers used in the Seno Opto-Acoustic Breast Imaging System safe?
The light used by the opto-acoustic tomography system is not harmful to skin and is within acceptable guidelines for maximum permissible exposure. Similarly, induced temperature-rise and pressure-rise parameters are comparable to that seen in other medical devices. No X-rays are used in the production of images.
6. Is this technology patented?
Patents have been filed for the various aspects of Seno’s opto-acoustic imaging system and its technology. Additionally, because of the nature of the science and engineering on which the technology is based, significant expertise resides within the Seno team.
7. Why hasn't someone already developed this?
The basic science of opto-acoustics was first discovered in 1880 by Alexander Graham Bell but the application of this effect was not made practical until the technology for producing stable laser light was refined in the 1970’s. In the late 1990’s, a PhD biophysicist developed the first successful method of combining laser light with the latest ultrasound detection techniques in a safe and effective way, thus providing the first opto-acoustic images in human tissue. This biophysicist became the lead researcher and inventor of opto-acoustics for clinical use and he, along with many other Seno scientists and engineers, were instrumental in initiating the first commercial product development. No company other than Seno Medical Instruments has demonstrated this degree of combining expertise and motivation towards commercialization.
8. Are there on-going clinical studies with this technology?
Seno has recently completed a pivotal study in the US and a post-market surveillance and clinical follow-up study in Europe to evaluate if this non-invasive imaging system (non-ionizing radiation, no injected contrast agents) has the potential to help doctors more effectively determine which patients need biopsies. Please watch this Website for information about future clinical trials and results.
Hope for a more accurate breast cancer diagnosis?
A clinical trial investigating a non-invasive, radiation-free imaging system that has the potential to help doctors more effectively determine which patients need breast biopsies has been completed.
